Implement

70 - HYDRAULIC SYSTEM( ГИДРАВЛИЧЕСКАЯ СИСТЕМА)

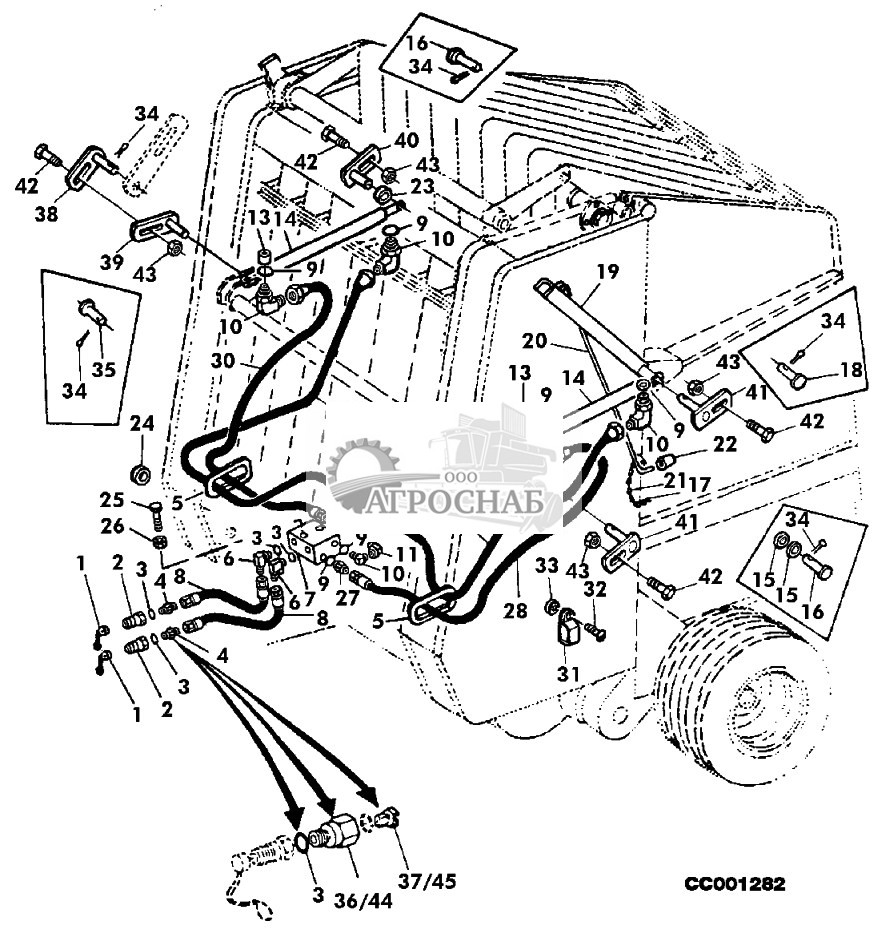

GATE AND TENSION HYDRAULIC SYSTEM(ВОРОТА И ГИДРАВЛИЧЕСКАЯ СИСТЕМА НАТЯЖЕНИЯ )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	L31745	Dust Shield	2		X	X
2	DC44442	Hydr. Quick Coupler Plug	2		X	X
3	R26375	O-Ring	AR		X	X
4	R36426	Fitting	2		X	X
5	R20759	Grommet	2		X	X
6	AR31674	Fitting	2		X	X
7	DC35914	Valve	1		X
	DC45721	Valve	1			X
8	DC41005	Hydraulic Hose	2		X	X
9	R26448	O-Ring	7		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
10	AT35121	Elbow Fitting	5		X	X
11	AE24616	Elbow Fitting	1		X	X
12	AT36465	Tee Fitting	1		X	X
13	N186647	Orifice	2		X	X
14	DC21899	Hydraulic Cylinder	2		X	X
15	24M7097	Washer	5		X	X
16	45M7079	Pin Fastener	2		X	X
17	CC23844	Spring Locking Pin	1		X	X
18	45M7077	Pin Fastener	1		X	X
19	DC22946	Latch	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
	DC39697	Latch	1		X	X
20	CC22943	Lever	1		X	X
21	AZ12018	Link Chain	1		X	X
22	Z40822	Knob	1		X	X
23	CC25449	Spacer	1		X	X
24	N157296	Grommet	1			X
25	19M7668	Cap Screw	2		X	X
26	E63526	Nut	2		X	X
27	AM31413	Fitting	1		X	X
28	DC41009	Hydraulic Hose	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
29	DC41010	Hydraulic Hose	3		X	X
30	DC41008	Hydraulic Hose	1		X	X
31	AH77869	Clip	AR		X	X
32	03M7183	Bolt	1		X	X
33	14M7298	Flange Nut	AR		X	X
34	11M7023	Cotter Pin	AR		X	X
35	45M7089	Pin Fastener	2		X	X
36	H82308	Adapter Fitting	1			X
37	N114610	Orifice	1			X
38	DC31788	Pin	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
39	DC33076	Pin	1		X	X
40	AE39377	Pin	1		X	X
41	DC44578	Pin	2		X	X
42	19M7866	Screw	AR		X	X
43	14M7298	Flange Nut	AR		X	X

TENSION SYSTEM HYDRAULICS(НАПРЯЖЕНИЕ СИСТЕМЫ ГИДРАВЛИКИ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	L31745	Dust Shield	2		-	295307
2	DC44442	Hydr. Quick Coupler Plug	2		-	295307
3	R26375	O-Ring	4		-	295307
4	R36426	Fitting	2		-	295307
5	R20759	Grommet	2		-	295307
6	N157296	Grommet	1		-	295307
7	AE42085	Gauge	1		-	295307
8	E33415	Coupling	1		-	295307
9	DC41046	Hydraulic Hose	1		-	295307
10	AT36465	Tee Fitting	1		-	295307
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	DC41008	Hydraulic Hose	2		-	295307
12	AT35121	Elbow Fitting	4		-	295307
13	R26448	O-Ring	8		-	295307
14	DC21902	Hydraulic Cylinder	2		-	295307
15	DC41007	Hydraulic Hose	2		-	295307
16	E69475	Handle	1		-	295307
17	03M7183	Bolt	2		-	295307
18	AT38033	Elbow Fitting	1		-	295307
19	E63526	Nut	2		-	295307
20	19M7668	Cap Screw	2		-	295307
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
21	DC53260	Pressure Relief Valve	1		-	295307
22	AR31674	Fitting	1		-	295307
23	DC41005	Hydraulic Hose	2		-	295307
24	AE24616	Elbow Fitting	1		-	295307
25	AR38337	Tee Fitting	1		-	295307
26	E70406	Screw	2		-	295307
27	AE39377	Pin	2		-	295307
28	14M7298	Flange Nut	2		-	295307
29	R44302	Tie Band	1		-	295307

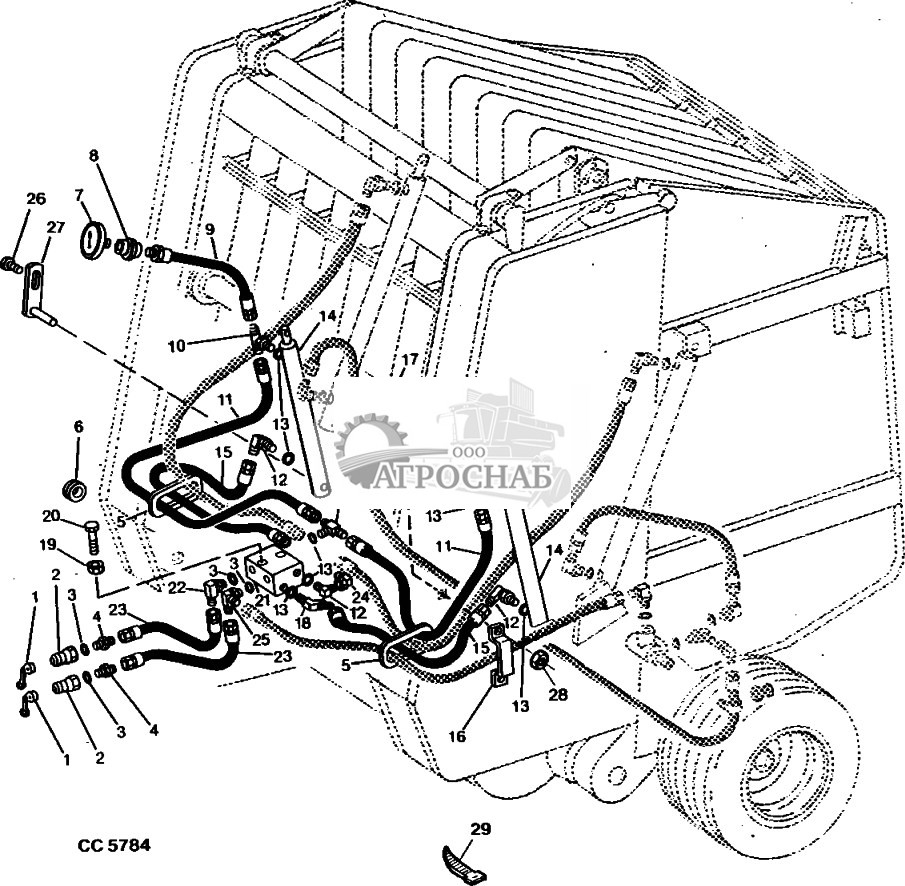

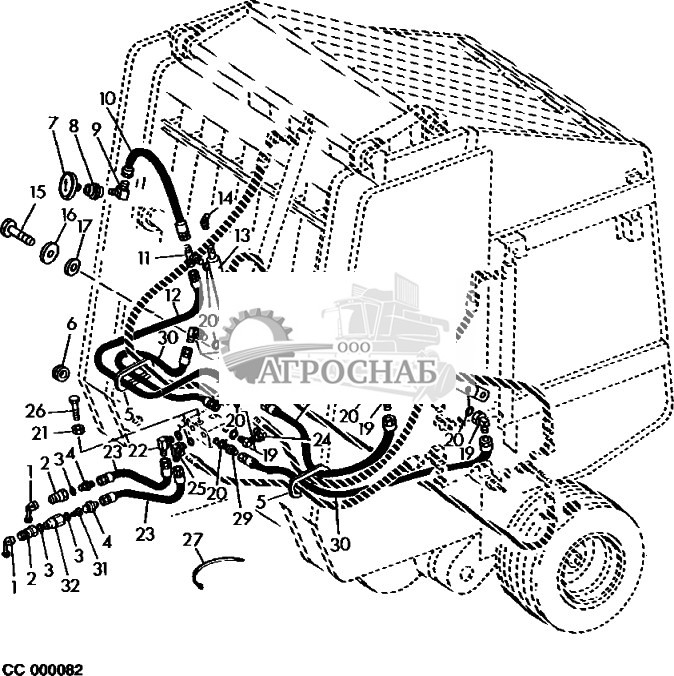

TENSION SYSTEM HYDRAULICS(НАПРЯЖЕНИЕ СИСТЕМЫ ГИДРАВЛИКИ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	L31745	Dust Shield	2	295308	-
2	DC44442	Hydr. Quick Coupler Plug	2	295308	-
3	R26375	O-Ring	AR	295308	-
4	R36426	Fitting	2	295308	-
5	R20759	Grommet	2	295308	-
6	N157296	Grommet	1	295308	-
7	AE48078	Pressure Gauge	1	295308	-
8	E33415	Coupling	1	295308	-
9	M42830	Elbow Fitting	1	295308	-
10	DC41013	Hydraulic Hose	1	295308	-
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	AT36465	Tee Fitting	2	295308	-
12	DC41006	Hydraulic Hose	1	295308	-
13	DC33625	Hydraulic Cylinder	2	295308	-
14	JD7806	Lubrication Fitting	2	295308	-
15	19M7787	Screw	2	295308	-
16	BP14099	Washer	2	295308	-
17	24H1477	Washer	AR	295308	-
18	24H1175	Washer	2	295308	-
19	AT35121	Elbow Fitting	4	295308	-
20	R26448	O-Ring	7	295308	-
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
21	14M7296	Flange Nut	2	295308	-
22	AR31674	Fitting	1	295308	-
23	DC41005	Hydraulic Hose	2	295308	-
24	AE24616	Elbow Fitting	1	295308	-
25	AR38337	Tee Fitting	1	295308	-
26	19M7347	Cap Screw	2	295308	-
27	T44946	Tie Band	AR	295308	-
28	DC41010	Hydraulic Hose	1	295308	-
29	AT38033	Elbow Fitting	1	295308	-
30	DC41008	Hydraulic Hose	2	295308	-
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
31	CC35201	Orifice	1				X
32	T34079	Coupling	1				X

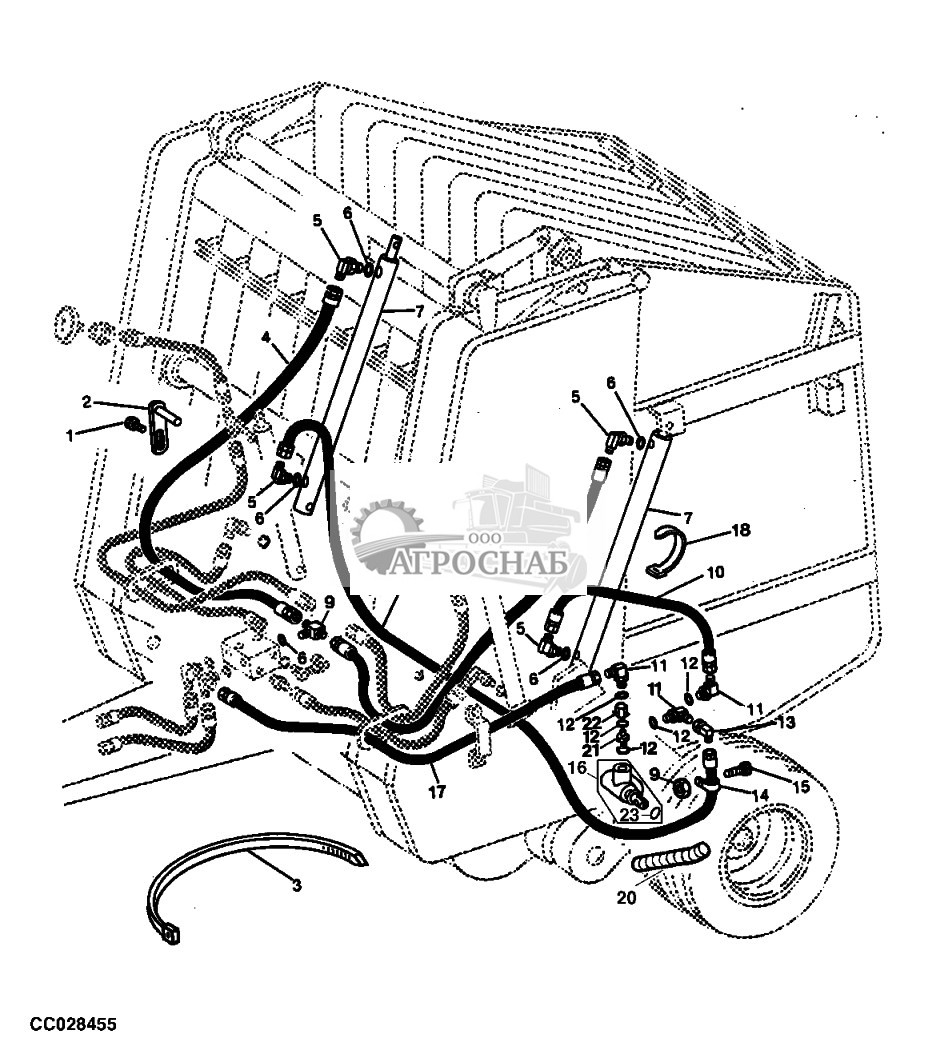

GATE HYDRAULICS(ГИДРАВЛИКА ВОРОТА )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	E70406	Screw	2				X
2	DC44578	Pin	2				X
3	T44946	Tie Band	9				X
4	DC41010	Hydraulic Hose	2		-	295307
	DC41010	Hydraulic Hose	1	295308	-
	DC41005	Hydraulic Hose	1	295308	-
5	AT35121	Elbow Fitting	4				X
6	R26448	O-Ring	5				X
7	DC21903	Hydraulic Cylinder	2		-	295307
	DC33626	Hydraulic Cylinder	2	295308	-
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
8	DC43011	Hydraulic Hose	1				X
9	AT36465	Tee Fitting	1				X
10	DC41012	Hydraulic Hose	1				X
11	AR31674	Fitting	3				X
12	R26375	O-Ring	3				X
13	AE24616	Elbow Fitting	1				X
14	E53830	Clamp	1				X
15	19M8163	Bolt	1				X
16	AE40896	Control Valve	1				X
17	DC41009	Hydraulic Hose	1		-	295307
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
	DC41008	Hydraulic Hose	1	295308	-
18	T38377	Clamp	2				X
19	14M7298	Flange Nut	1				X
20	......	Conduit	1
21	R63922	Fitting	1				X
22	AE48607	Check Valve	1				X
23	T104783	O-Ring	1				X

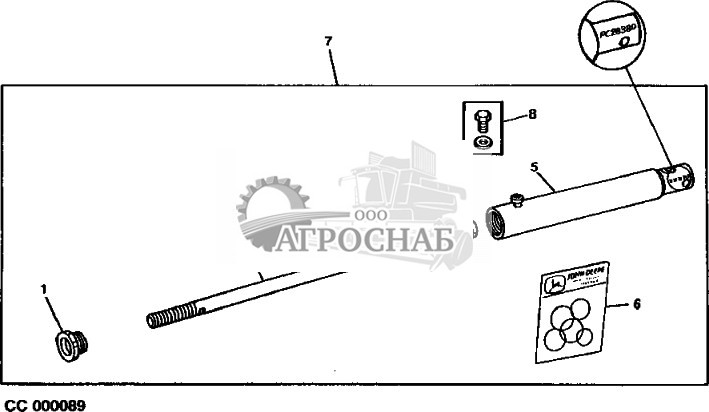

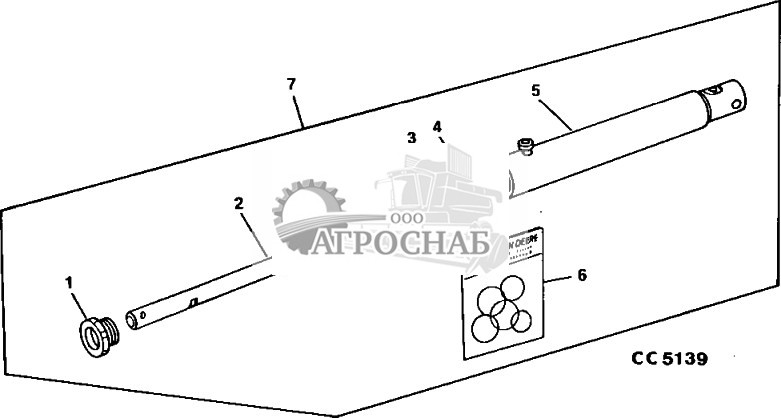

TENSION CYLINDER(ЦИЛИНДР НАТЯЖЕНИЯ )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	CC38457	Socket	1		X	X
2	CC23871	Hydraulic Cylinder Rod	1		X	X
3	CC22245	Piston	1		X	X
4	14M7410	Lock Nut	1		X	X
5	DC23872	Cylinder Block	1		X	X
	......	Hydraulic Cylinder Barrel	1		X	X
6	DC44537	Hydraulic Cylinder Kit	1		X	X
7	DC21899	Hydraulic Cylinder	2		X	X

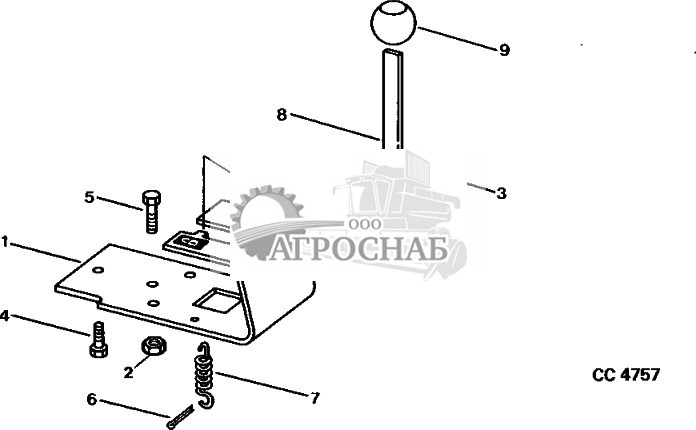

GATE LOCK BRACKET(ВОРОТА ЗАМКА КРОНШТЕЙН)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	AE43399	Bracket	1				X
2	14M7298	Flange Nut	2				X
3	34H282	Spring Pin	1				X
4	19H2020	Cap Screw	2				X
5	19M7139	Cap Screw	2				X
6	11M7091	Cotter Pin	2				X
7	R59537	Spring	1				X
8	E75250	Strap	1				X
9	R56416	Knob	1				X

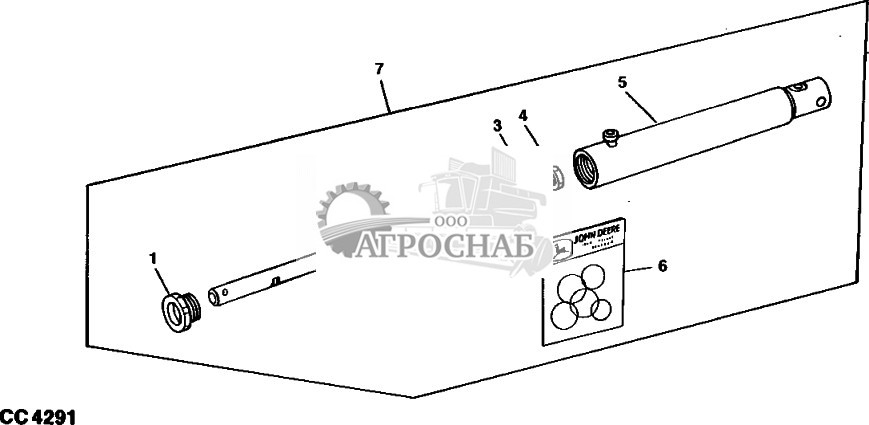

GATE CYLINDER(ЦИЛИНДР ВОРОТ )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	CC38457	Socket	1		-	295307
2	CC22251	Rod	1		-	295307
3	CC22245	Piston	1		-	295307
4	14M7410	Lock Nut	1		-	295307
5	DC22250	Hydraulic Cylinder Barrel	1		-	295307
6	DC22249	Hydraulic Cylinder Kit	1		-	295307
7	DC21903	Hydraulic Cylinder	2		-	295307

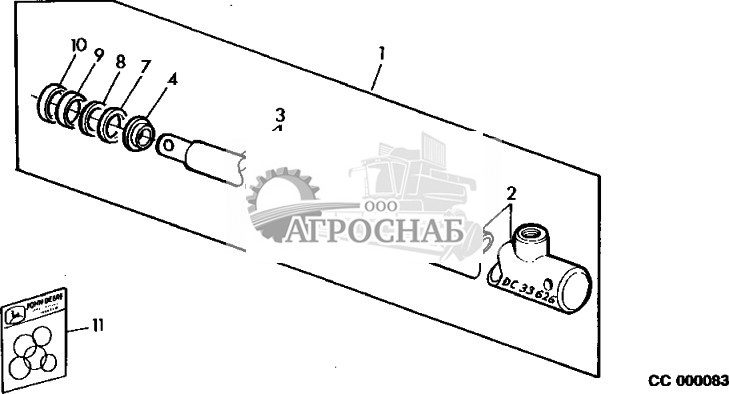

GATE CYLINDER(ЦИЛИНДР ВОРОТ )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	......	Hydraulic Cylinder	2	295308	-
	DC204809	Hydraulic Cylinder	2				X
2	......	Hydraulic Cylinder Barrel	1	295308	-
	......	Hydraulic Cylinder Barrel	1				X
3	DC33271	Rod	1	295308	-
	DC209651	Hydraulic Cylinder Rod	1				X
4	CC38450	Socket	1	295308	-
	CC119324	Socket	1				X
5	......	Back-Up Ring	1	295308	-
	......	Back-Up Ring	1				X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
6	......	Scraper Ring	1	295308	-
	......	Scraper Ring	1				X
7	......	O-Ring	1	295308	-
	......	O-Ring	1				X
8	......	Gasket	1	295308	-
	......	Gasket	1				X
9	......	Back-Up Ring	1	295308	-
	......	Back-Up Ring	1				X
10	......	Scraper Ring	1	295308	-
	......	Scraper Ring	1				X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	DC44539	Hydraulic Cylinder Kit	1	295308	-
	DC209652	Hydraulic Cylinder Kit	1				X

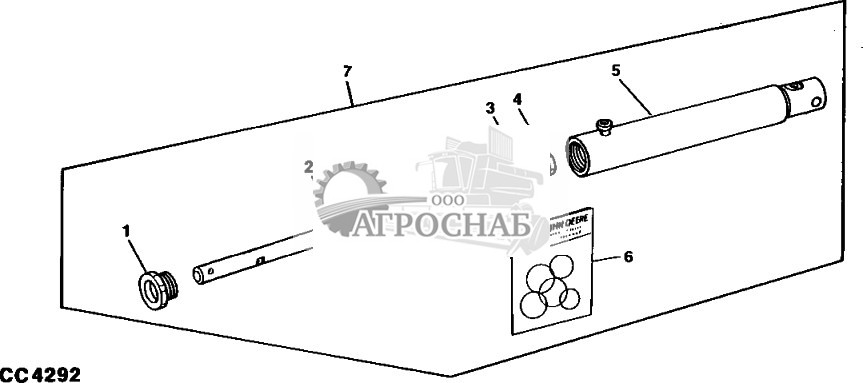

TENSION CYLINDER(ЦИЛИНДР НАТЯЖЕНИЯ )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	CC38457	Socket	1		-	295307
2	CC22247	Rod	1		-	295307
3	CC22245	Piston	1		-	295307
4	14M7410	Lock Nut	1		-	295307
5	DC22246	Hydraulic Cylinder Barrel	1		-	295307
6	DC22249	Hydraulic Cylinder Kit	1		-	295307
7	DC21902	Hydraulic Cylinder	2		-	295307

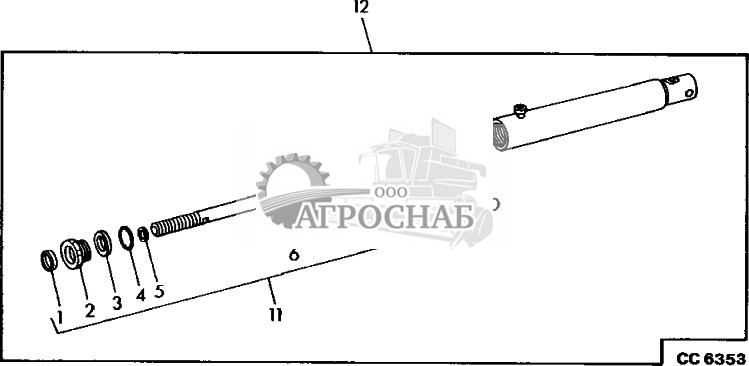

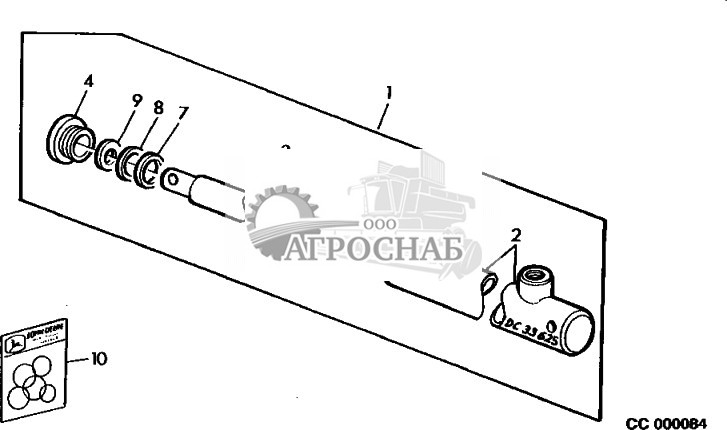

TENSION CYLINDER(ЦИЛИНДР НАТЯЖЕНИЯ )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	......	Hydraulic Cylinder	2	295308	-
	DC204808	Hydraulic Cylinder	2				X
2	......	Hydraulic Cylinder Barrel	1	295308	-
	......	Hydraulic Cylinder Barrel	1				X
3	DC33176	Hydraulic Cylinder Rod	1	295308	-
	DC209805	Hydraulic Cylinder Rod	1				X
4	CC38457	Socket	1	295308	-
	CC119477	Socket	1				X
5	......	Back-Up Ring	1	295308	-
	......	Back-Up Ring	1				X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
6	......	Scraper Ring	1	295308	-
	......	Scraper Ring	1				X
7	......	O-Ring	1	295308	-
	......	O-Ring	1				X
8	......	Scraper Ring	1	295308	-
	......	Scraper Ring	1				X
9	......	Back-Up Ring	1	295308	-
	......	Back-Up Ring	1				X
10	DC44538	Hydraulic Cylinder Kit	1	295308	-
	DC209804	Hydraulic Cylinder Kit	1				X

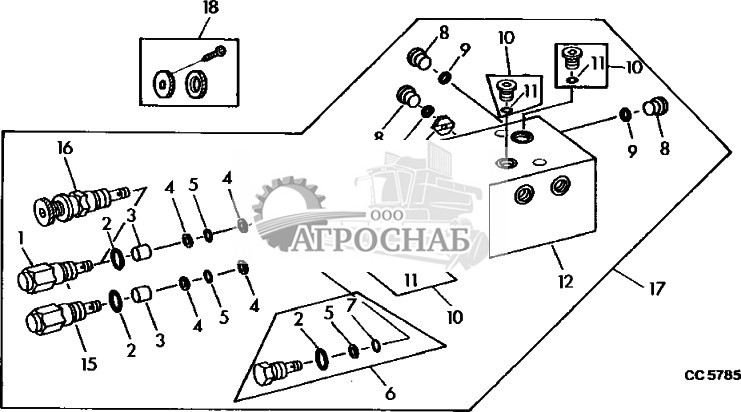

Bale Density Regulating Valve(Бэйл Регулирующий Плотность Клапана)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	AE46424	Pressure Relief Valve	1		X
2	R26906	O-Ring	3		X	X
3	E72010	Screen	2		X	X
4	E71998	Back-Up Ring	4		X	X
5	R28776	O-Ring	4		X	X
6	AA28979	Check Valve	1		X	X
7	T57374	Back-Up Ring	3		X	X
8	AT49216	Fitting Plug	3		X	X
9	T70177	O-Ring	3		X	X
10	AN122518	Fitting Plug	3		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	R28782	O-Ring	3		X	X
12	DC44624	Valve	1		X	X
13	AA28980	Piston	1		X	X
14	E42985	Orifice	1		X	X
15	AE43612	Pressure Relief Valve	1		X	X
16	DC41749	Valve	1			X
17	DC35914	Valve	1		X
	DC41753	Valve	1			X
18	AE45841	Knob	1			X

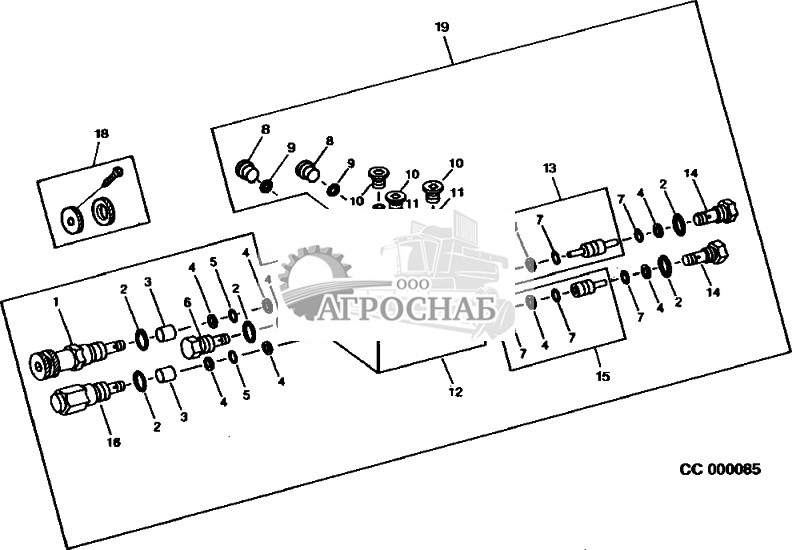

Bale Density Regulating Valve(Бэйл Регулирующий Плотность Клапана)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	DC35917	Tire Valve Stem	1		-	295307
	AE51679	Relief Valve	1	295308	-
2	R26906	O-Ring	5				X
3	E72010	Screen	2				X
4	E71998	Back-Up Ring	9				X
5	R28776	O-Ring	2				X
6	AA28979	Check Valve	1				X
7	T57374	Back-Up Ring	7				X
8	AT49216	Fitting Plug	2				X
9	R26448	O-Ring	2				X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
10	AN122518	Fitting Plug	3				X
11	R28782	O-Ring	3				X
12	E72286	Valve	1		-	295307
	E81426	Housing	1	295308	-
13	AE44088	Piston	1				X
14	AE43912	Check Valve	2				X
15	AA28980	Piston	1				X
16	AE43612	Pressure Relief Valve	1				X
17	E42985	Orifice	1				X
18	AE45841	Knob	1				X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
19	AE51680	Valve	1				X

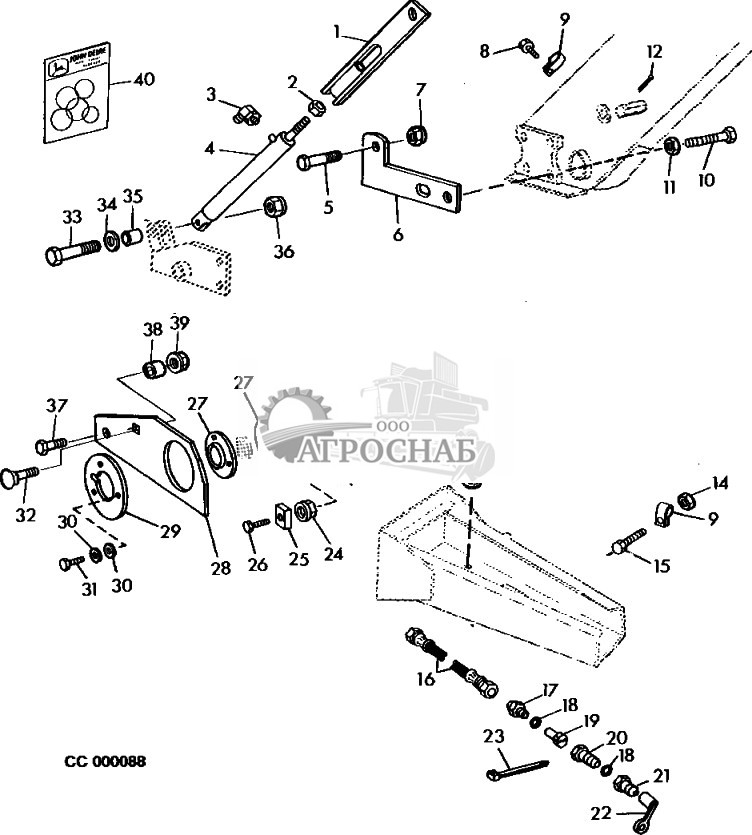

HYDRAULIC PICKUP LIFT,WITH DOUBLE-ACTING CYLINDER (-1990 MODEL YEAR)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	......	Cylinder	1		-	XXXX
	......	Cylinder	1	XXXX	-
	AE38126	Hydraulic Cylinder	1				X
	DC209317	Hydraulic Cylinder	1		X	X	X
2	AH63565	Elbow Fitting	2		X	X	X
3	R28782	O-Ring	2		X	X	X
4	11M7028	Cotter Pin	1		X	X	X
5	P7402H	Pin Fastener	1		X	X	X
6	W255FA	Yoke	1		X	X	X
7	14H821	Nut	1		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
8	24M7053	Washer	2		X	X	X
9	19M8485	Cap Screw	1		X	X	X
10	E71172	Bracket	2		X	X	X
11	E70406	Screw	AR		X	X	X
12	R35668	Clamp	AR		X	X	X
13	11M7038	Cotter Pin	1		X	X	X
14	N157259	Pressed Flanged Housing	2		X	X	X
15	19M7500	Cap Screw	2		X	X	X
16	E71169	Lift Arm	1		X	X	X
17	19M7167	Cap Screw	3		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
18	24H1303	Washer	6		X	X	X
19	E71657	Retainer	1		X	X	X
20	19M7382	Cap Screw	1		X	X	X
21	E71170	Bar	1		X	X	X
22	03M7184	Bolt	1		X	X	X
23	19M7139	Cap Screw	1		X	X	X
24	DC44442	Hydr. Quick Coupler Plug	2		X	X	X
25	R26375	O-Ring	2		X	X	X
26	AA31891	Fitting	2		X	X	X
27	DC41014	Hydraulic Hose	2		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
28	R76477	Tie Band	2		X	X	X
29	14M7170	Lock Nut	1		X	X	X
30	14M7276	Nut	2		X	X	X
31	14M7274	Nut	1		X	X	X
32	14M7298	Flange Nut	2		X	X	X
33	R74243	Plug	1		X	X	X
34	R76459	Tag	1		X	X	X
35	L31745	Dust Shield	2		X	X	X
36	E78278	Orifice	1	XXXX	-
37	19M7285	Cap Screw	1		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
38	BP14014	Washer	1		X	X	X
39	14M7299	Flange Nut	1		X	X	X

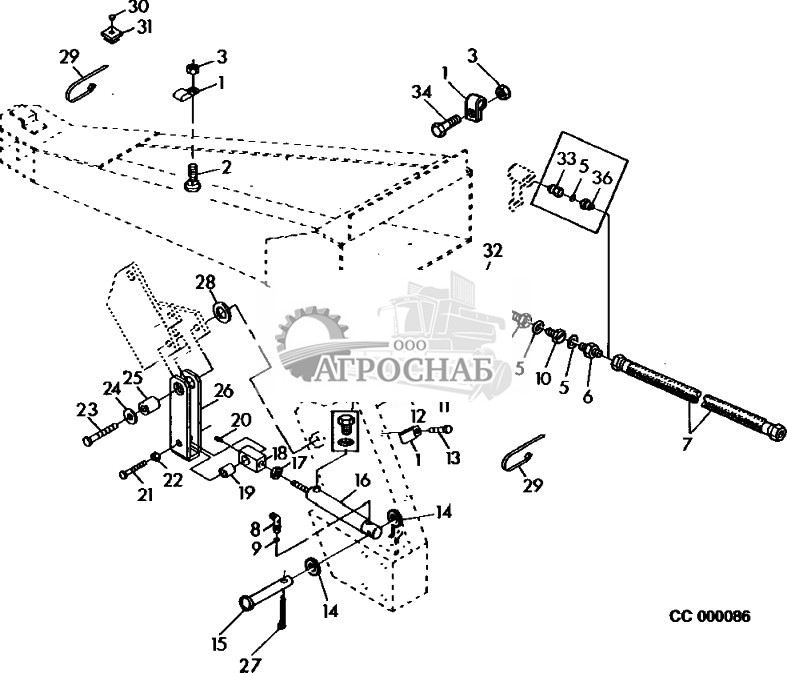

HYDRAULIC PICKUP LIFT,WITH SINGLE ACTING CYLINDER

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	R35668	Clamp	5		X	X	X
2	03M7184	Bolt	1		X	X	X
3	14M7298	Flange Nut	2		X	X	X
4	T34079	Coupling	1		X	X	X
5	R26375	O-Ring	2		X	X	X
6	CC27030	Adapter Fitting	1		X	X	X
7	DC41014	Hydraulic Hose	1		X	X	X
8	AH63565	Elbow Fitting	1		X	X	X
9	R28782	O-Ring	1		X	X	X
10	Z37688	Orifice	1		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	14M7168	Lock Nut	1		X	X	X
12	E72675	Bushing	1		X	X	X
13	E70406	Screw	2		X	X	X
14	24M7053	Washer	2		X	X	X
15	CC32638	Pin Fastener	1		X	X	X
16	......	Hydraulic Cylinder	1		X	X	X
	DC209317	Hydraulic Cylinder	1		X	X	X
17	14H821	Nut	1		X	X	X
18	E78974	End	1		X	X	X
19	E57570	Spacer	1		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
20	JD7844	Lubrication Fitting	1		X	X	X
21	19M7363	Cap Screw	1		X	X	X
22	14M7299	Flange Nut	1		X	X	X
23	19M7415	Cap Screw	1		X	X	X
24	24M7180	Washer	1		X	X	X
25	E78924	Bushing	1		X	X	X
26	DC32509	Clevis	1		X	X	X
27	11M7021	Cotter Pin	1		X	X	X
28	24M7230	Washer	1		X	X	X
29	T44946	Tie Band	6		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
30	R74243	Plug	1		X	X	X
31	R76459	Tag	1		X	X	X
32	L31745	Dust Shield	1		X	X	X
33	DC44442	Hydr. Quick Coupler Plug	1		X	X	X
34	19M7139	Cap Screw	1		X	X	X
35	DC33927	Plug	1		X	X	X
36	AA31891	Fitting	1		X	X	X

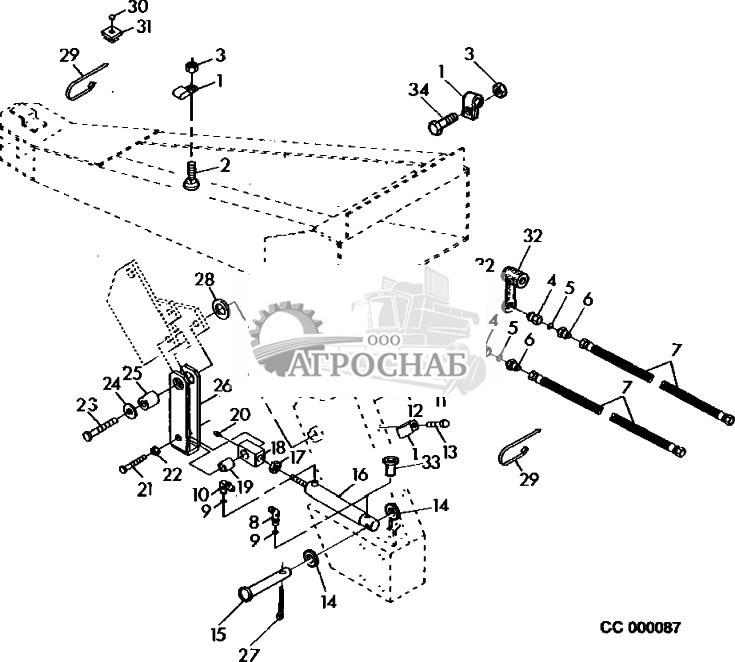

HYDRAULIC PICKUP LIFT,WITH DOUBLE-ACTING CYLINDER

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	R35668	Clamp	5		X	X	X
2	03M7184	Bolt	1		X	X	X
3	14M7298	Flange Nut	2		X	X	X
4	DC44442	Hydr. Quick Coupler Plug	2		X	X	X
5	R26375	O-Ring	2		X	X	X
6	AA31891	Fitting	2		X	X	X
7	DC41014	Hydraulic Hose	AR		X	X	X
8	AH63565	Elbow Fitting	1		X	X	X
9	R28782	O-Ring	2		X	X	X
10	AH99398	Elbow Fitting	AR		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	14M7168	Lock Nut	1		X	X	X
12	E72675	Bushing	1		X	X	X
13	E70406	Screw	2		X	X	X
14	24M7053	Washer	2		X	X	X
15	CC32638	Pin Fastener	1		X	X	X
16	......	Hydraulic Cylinder	1		X	X	X
	DC209317	Hydraulic Cylinder	1		X	X	X
17	14H821	Nut	1		X	X	X
18	E78974	End	1		X	X	X
19	E57570	Spacer	1		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
20	JD7844	Lubrication Fitting	1		X	X	X
21	19M7363	Cap Screw	1		X	X	X
22	14M7299	Flange Nut	1		X	X	X
23	19M7415	Cap Screw	1		X	X	X
24	24M7180	Washer	1		X	X	X
25	E78924	Bushing	1		X	X	X
26	DC32509	Clevis	1		X	X	X
27	11M7021	Cotter Pin	1		X	X	X
28	24M7230	Washer	1		X	X	X
29	T44946	Tie Band	6		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
30	R74243	Plug	1		X	X	X
31	R76459	Tag	1		X	X	X
32	L31745	Dust Shield	2		X	X	X
33	E78278	Orifice	1		X	X	X
34	19M7139	Cap Screw	1		X	X	X

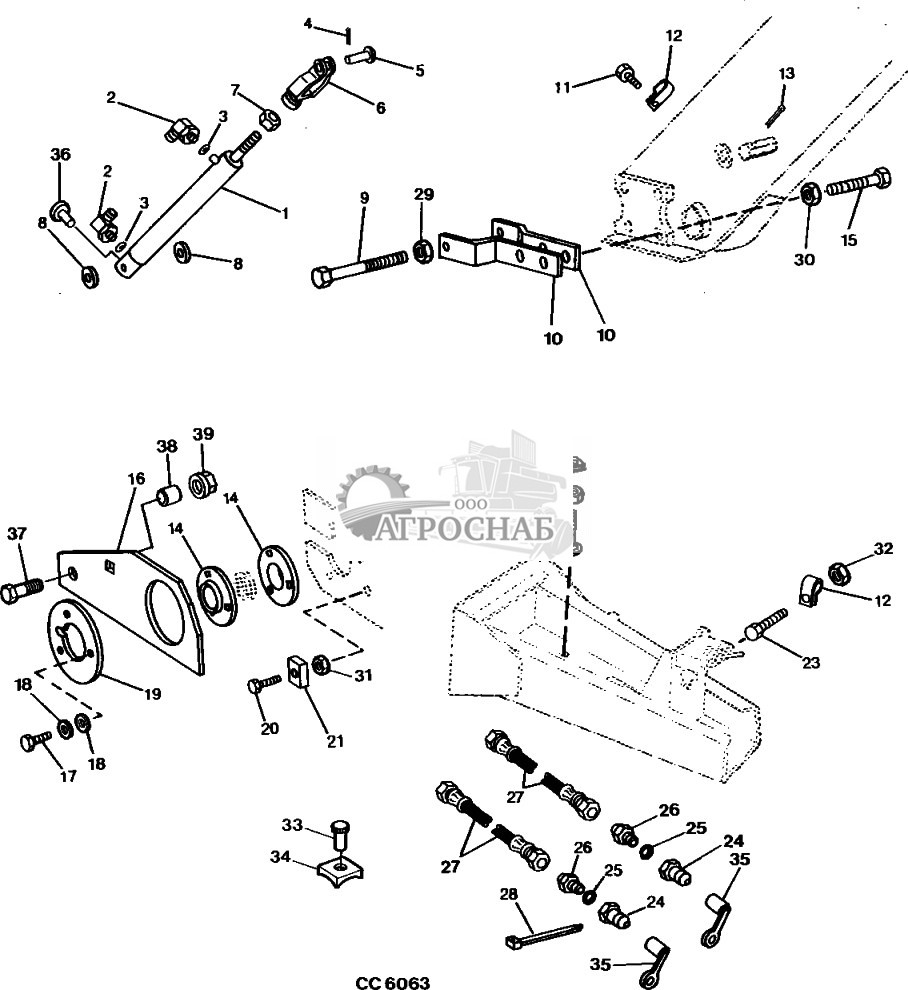

HYDRAULIC PICKUP LIFT WITH SINGLE-ACTING CYLINDER (-1990 MODEL YEAR)(ГИДРАВЛИЧЕСКИЙ ПОДЪЕМНИК САМОВЫВОЗ С SINGLEACTING ЦИЛИНДР МОДЕЛЬНОГО ГОДА)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	DC25954	Strap	1		X	X	X
2	14H826	Nut	2		X	X	X
3	CC28696	Elbow Fitting	1		X	X	X
4	DC16679	Hydraulic Cylinder	1		X	X	X
5	19H1765	Cap Screw	1		X	X	X
6	DC25951	Bracket	1		X	X	X
7	E50102	Lock Nut	1		X	X	X
8	E70406	Screw	2		X	X	X
9	R35668	Clamp	5		X	X	X
10	19M7500	Cap Screw	2		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	14M7276	Nut	2		X	X	X
12	11M7038	Cotter Pin	1		X	X	X
13	14M7298	Flange Nut	2		X	X	X
14	03M7184	Bolt	1		X	X	X
15	19M7139	Cap Screw	1		X	X	X
16	DC41014	Hydraulic Hose	1		X	X	X
17	CC27030	Adapter Fitting	1		X	X	X
18	R26375	O-Ring	2		X	X	X
19	Z37688	Orifice	1		X	X	X
20	T34079	Coupling	1		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
21	DC44442	Hydr. Quick Coupler Plug	1		X	X	X
22	L31745	Dust Shield	1		X	X	X
23	R76477	Tie Band	2		X	X	X
24	14M7274	Nut	1		X	X	X
25	E71170	Bar	1		X	X	X
26	19M7382	Cap Screw	1		X	X	X
27	N157259	Pressed Flanged Housing	2		X	X	X
28	E71169	Lift Arm	1		X	X	X
29	E71657	Retainer	1		X	X	X
30	24H1303	Washer	6		X	X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
31	19M7167	Cap Screw	3		X	X	X
32	03M7198	Bolt	1		X	X	X
33	19M7479	Cap Screw	1				X
34	24M7040	Washer	2				X
35	Z21523	Spacer	2				X
36	14M7167	Lock Nut	1				X
37	19M7285	Cap Screw	1		X	X	X
38	BP14014	Washer	1		X	X	X
39	14M7299	Flange Nut	1		X	X	X
40	DC33686	Hydraulic Cylinder Kit	1		X	X	X

PICKUP LIFT CYLINDER (CESSNA)(САМОВЫВОЗ ГИДРОЦИЛИНДР ПОДЪЕМА ЦЕССНЫ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	E52535	Seal	1		-	295307
2	E64407	Guide	1		-	295307
3	......	Back-Up Ring	1		-	295307
4	......	O-Ring	1		-	295307
5	......	Seal	1		-	295307
6	H80441	Stud	1		-	295307
7	H63858	O-Ring	1		-	295307
8	H63859	Piston Ring	1		-	295307
9	H80443	Piston	1		-	295307
10	H80440	Lock Nut	1		-	295307
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	AE48886	Seal Kit	1		-	295307
12	AE38126	Hydraulic Cylinder	1		-	295307

TWINE ARM AND PICKUP LIFT CYLINDER (S.A.H.L.)(ШПАГАТ РУКУ И ПОДНИМИТЕ ПИКАП ЦИЛИНДРА САХЛ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	CC38455	Socket	1		X	X	X
2	CC22241	Hydraulic Cylinder Rod	1		X	X	X
3	CC22239	Piston	1		X	X	X
4	14M7263	Lock Nut	1		X	X	X
5	DC22240	Hydraulic Cylinder Barrel	1		-	XXXXXX
	......	Hydraulic Cylinder Barrel	1	XXXXXX	-
6	DC33926	Hydraulic Cylinder Kit	1		X	X	X
7	......	Hydraulic Cylinder	1		-	XXXXXX
	......	Hydraulic Cylinder	1		X
	......	Hydraulic Cylinder	1	278151	-
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
	......	Hydraulic Cylinder	1	290058	-
	DC209317	Hydraulic Cylinder	1		X	X	X
8	DC33927	Plug	1		X	X	X

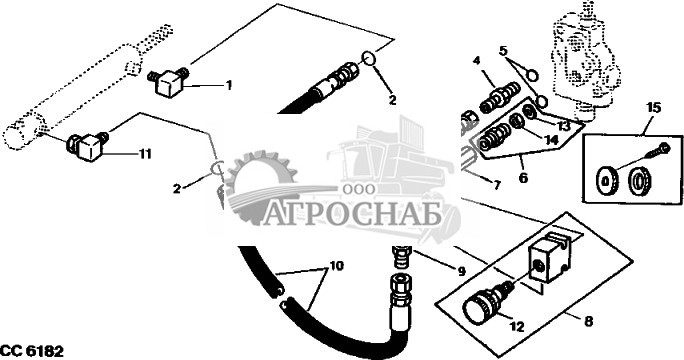

TWINE WRAPPING HYDRAULIC SYSTEM(ШПАГАТ ДЛЯ УПАКОВКИ ГИДРАВЛИЧЕСКОЙ СИСТЕМЫ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	AH99398	Elbow Fitting	1			X	X
2	R28782	O-Ring	2			X	X
3	DC41019	Hydraulic Hose	1			X	X
4	H75414	Adapter Fitting	1			X	X
5	R26448	O-Ring	2			X	X
6	DC25136	Fitting	1			X	X
7	AE34316	Fitting	1			X	X
8	AE48980	Control Valve	1			X	X
9	T36253	Adapter Fitting	1			X	X
10	DC41020	Hydraulic Hose	1			X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	AH63565	Elbow Fitting	1			X	X
12	AE48981	Control Valve	1			X	X
13	R27136	Washer	1			X	X
14	R26572	Nut	1			X	X
15	AE45841	Knob	1			X	X

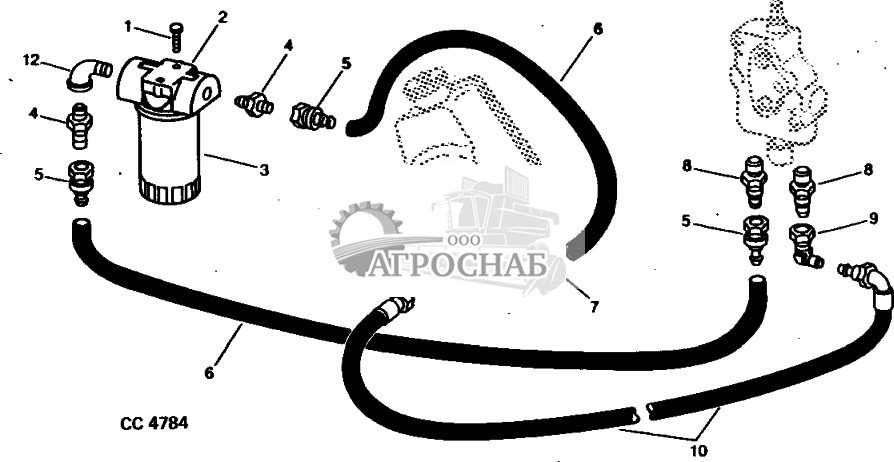

TWINE WRAPPING FILTER AND HOSES(ФИЛЬТР ОБОРАЧИВАТЬ ШПАГАТ И ШЛАНГИ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	19H1227	Cap Screw	2			X	X
2	AE48620	Base	1			X	X
3	AE33293	Oil Filter	1			X	X
4	T38693	Fitting	2			X	X
5	E70024	Adapter Fitting	3			X	X
6	DC41048	Hydraulic Hose	2			X	X
7	AR21836	Clamp	1			X	X
8	AM31413	Fitting	2			X	X
9	AE24616	Elbow Fitting	1			X	X
10	AE41998	Hydraulic Hose	1			X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	R26287	O-Ring	1			X	X
12	15H200	Elbow Fitting	1			X	X

CONTROL VALVE(КЛАПАН )

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	AN150266	Fitting Plug	1			X	X
2	N150467	Spring	1			X	X
3	N150466	Plunger	1			X	X
4	H132510	O-Ring	2			X	X
5	N150470	Bushing	1			X	X
6	M87511	Washer	1			X	X
7	AM100539	Spacer	1			X	X
8	M87403	Snap Ring	1			X	X
9	AM100541	Cap	1			X	X
10	AE47542	Control Valve	1			X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	AH127682	Seal	1			X	X

NET HYDRAULICS(ЧИСТАЯ ГИДРАВЛИКА)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	AH63565	Elbow Fitting	2			X	X
2	R28782	O-Ring	2			X	X
3	DC41019	Hydraulic Hose	1			X	X
4	DC41020	Hydraulic Hose	1			X	X
5	DC31527	Valve	1			X	X
6	R26892	Fitting	1			X	X
7	DC41017	Hydraulic Hose	2			X
	DC41018	Hydraulic Hose	2				X
8	AE37051	Hydraulic Cylinder	2			X	X
9	AA34747	Elbow Fitting	1			X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
10	R26448	O-Ring	5			X	X
11	R27136	Washer	2			X	X
12	R26572	Nut	2			X	X
13	DC25136	Fitting	2			X	X
14	T17568	Tee Fitting	2			X	X
15	CC30788	Adapter Fitting	1			X	X
16	Z37687	Orifice	1			X	X
17	H75414	Adapter Fitting	1			X	X
18	F3250R	Fitting	1			X	X
19	AE34316	Fitting	2			X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
20	AE48981	Control Valve	1			X	X
21	AE48980	Control Valve	1			X	X
22	T36253	Adapter Fitting	2			X	X
23	AH99398	Elbow Fitting	1			X	X
24	CC31196	Seal	1			X	X
25	T56143	Back-Up Ring	1			X	X
26	U11647	O-Ring	1			X	X
27	DC33241	Hydraulic Cylinder Kit	1			X	X

SOFT CORE HYDRAULICS(МЯГКИЙ СЕРДЕЧНИК ГИДРАВЛИКИ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	DC25344	Tee Fitting	1		-	297211
2	AZ32732	Elbow Fitting	1		-	297211
3	DC41015	Hydraulic Hose	1		-	297211
4	AR26746	Elbow Fitting	1		-	297211
5	R26448	O-Ring	2		-	297211
6	AM31413	Fitting	2		-	297211
7	DC31852	Valve	1		-	297211
8	R26287	O-Ring	1		-	297211
9	R28782	O-Ring	3		-	297211
10	AN122518	Fitting Plug	3		-	297211
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	T13119	O-Ring	1		-	297211
12	AA28979	Check Valve	1		-	297211
13	CC31851	Valve	1		-	297211
14	DC31935	Valve	1		-	297211
15	DC41016	Hydraulic Hose	1		-	297211
16	19M7668	Cap Screw	1		-	297211
17	CC32545	Spacer	1		-	297211
18	14M7167	Lock Nut	1		-	297211
19	DC40078	O-Ring Kit	1				X

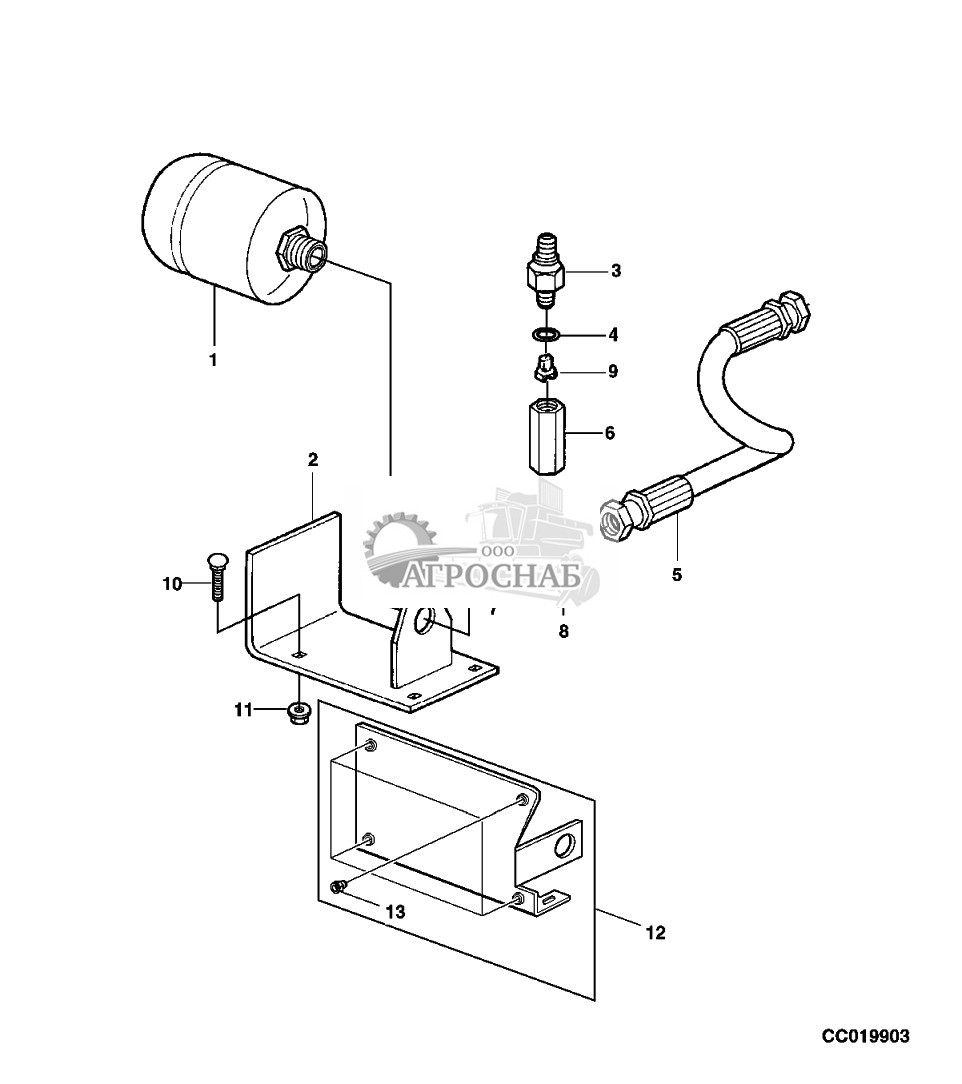

ACCUMULATOR FOR HYDRAULIC CYLINDER(АККУМУЛЯТОР ДЛЯ ГИДРАВЛИЧЕСКОГО ЦИЛИНДРА)

key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
1	AZ50840	Hydraulic Accumulator	1		X
2	CC41487	Holder	1		X
3	R36426	Fitting	1		X
4	R26375	O-Ring	1		X
5	DC40239	Hydraulic Hose	1		X
6	CC41486	Adapter Fitting	1		X
7	CC19416	Nut	1		X
8	AR38337	Tee Fitting	1		X
9	CC33053	Orifice	1		X
10	03M7183	Bolt	1		X
key	PART NO.	PART NAME	QTY	SERIAL NO.	540	545	550	REMARKS
11	14M7298	Flange Nut	1		X
12	DC45655	Holder	1		X
13	Z51633	Nut	4		X
